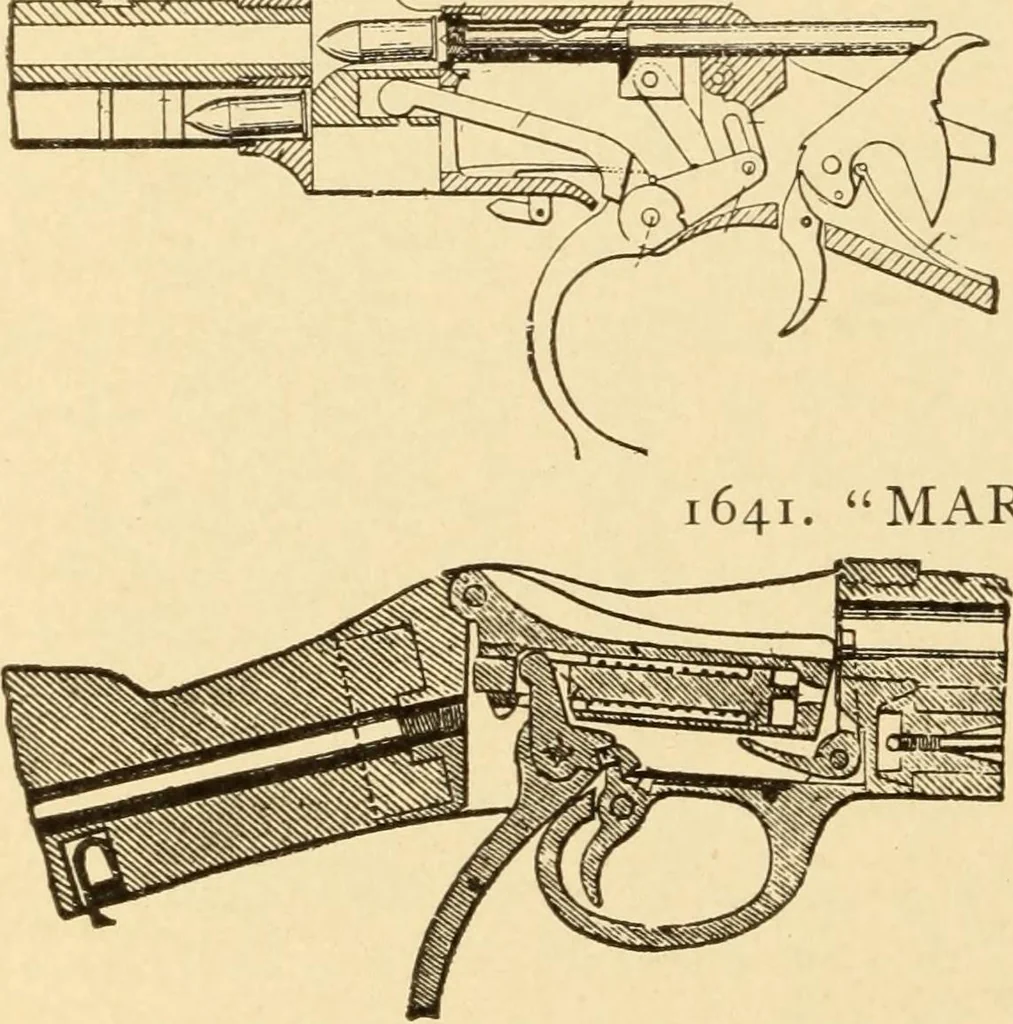

1638. GUN LOCK.—I, lock plate;2, hammer; 3, mainspring; 4, tum-bler; 5, sear or trigger lever; 6, sealspring. 1639. COLT CYLINDER REVOLVINGDEVICE for firearms. a, the pawl thatcatches the circular ratchet b; r, a. spring thatpushes the pawl into the teeth of the ratchet;D, the hammer butt to which… … 1640. MAGAZINE RIFLE, Lee - Metf ord model.Magazine in the barrel stock. MARTINI-HENRY RIFLE.— The breech block is pivotedat the rear end and is thrownup or down by the lever atthe rear of the trigger guard.A spring plunger in thebreech block, let go by thetrigger, explodes the charge.
