Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 343

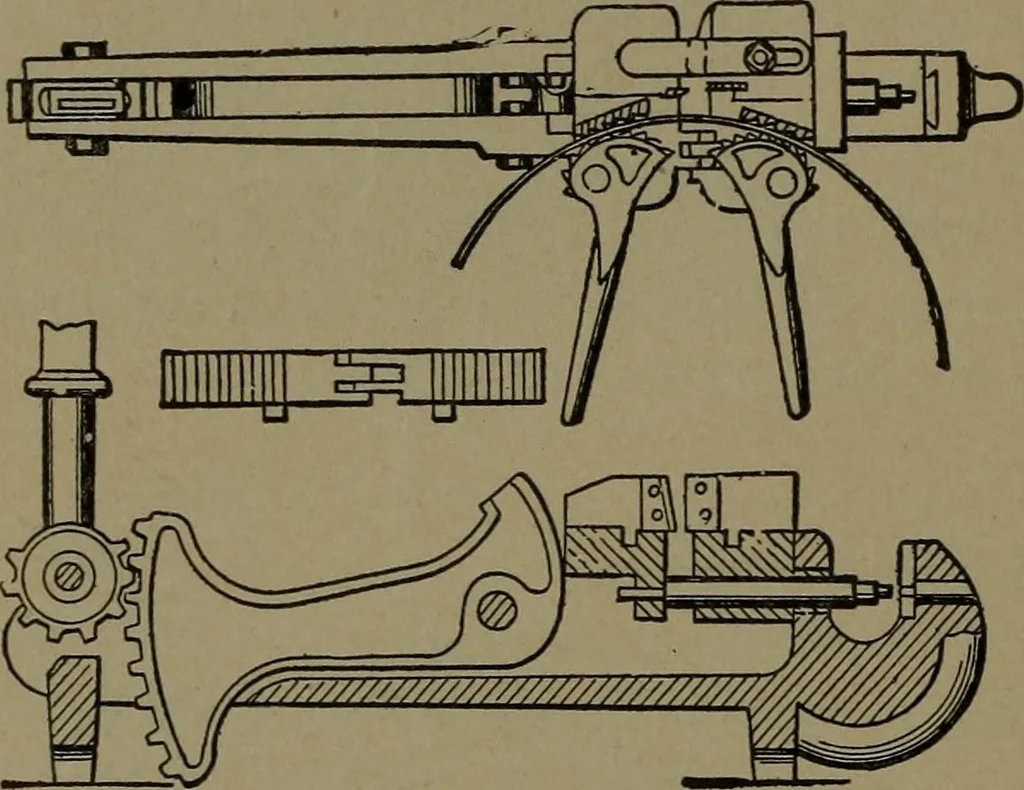

1368. TIRE SHRINKER.—A linkchain around the tire terminates in a fixedhook, and the hook on a powerful lever. 33^ MILL AND FACTORY APPLIANCES. 1369. COMBINED TIRE UPSETTING AND PUNCHINGMACHINE.—The tire is made fast by the cam jaws, and the mov-able cam is set forwardby the sector cam leverand… … 1371. PLATE SAWING MACHINE.—A slow-running steel saw blade lubri-cated by dippingin an oil box. Thesaw is automatical-ly fed to the plateby a worm gear,but has a quickreturn by the handwheel.
Mechanical movements
