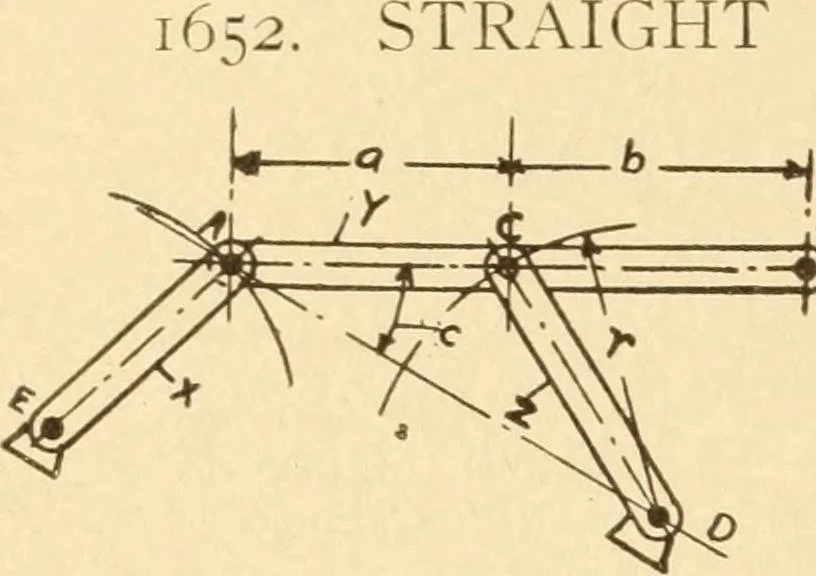

39« STRAIGHT LINE MOVEMENTS. LINE MOTION WITH TWOLEVERS AND ONE LINK.—.^ Levers X and Z are connected by^/^link Y. Z is a lever pivoted at Eand connected to F at ^. Z is alever pivoted at D and connected toF at C F is a link connected toX at A and to Z at C, the end B moving in a straight line.… … LINE MOTION WITH ONELEVER AND A SLIDINGLINK.—Lever Z is connect-ed to a sliding link F. Z ispivoted at D and connected tolink F at C. F is a link con-nected to Z at C and to a sliding block at A, the other end of which is at B, and moves in a straight line as at 5^.
