Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 405

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 405

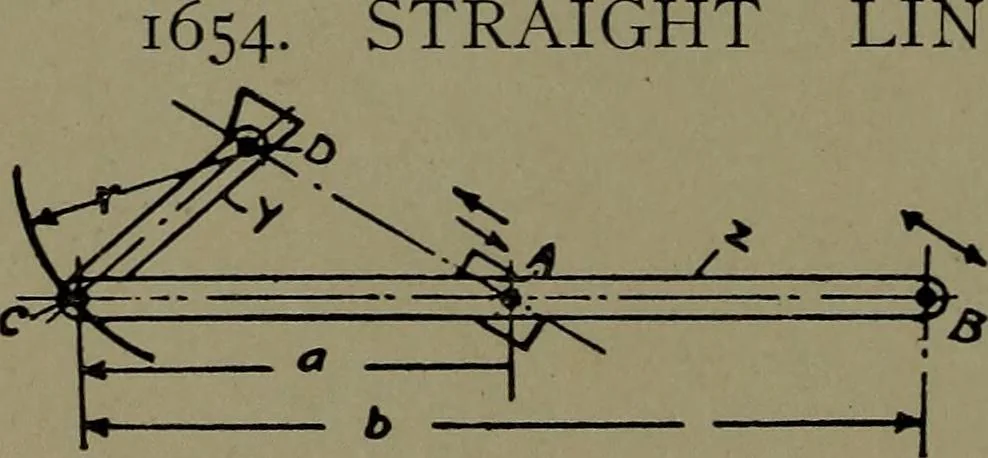

STRAIGHT LINE MOTION WITH ONE LEVER AND A SLIDINGLINK.—Lever F is connected4^ to a sliding link Z. F is pivot-ed at D and connected to Z atC. Z is connected to F at Cto a sliding guide at A, and the end B moves in a straight line. … 1655. STRAIGHT
