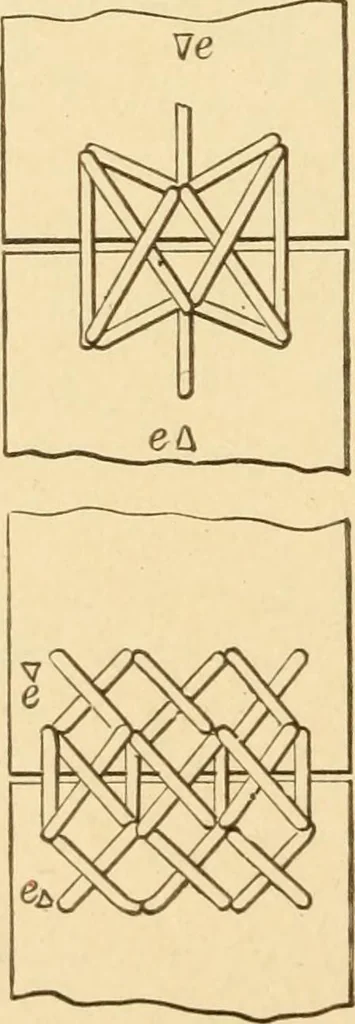

65-66. BELT LACING.—Thestraight lacing 65 should run nextthe pulley, while 66 represents theoutside of the belt. Lace shouldbe drawn in at a, a, to centre ; laceeach way out and return, endingat e, e, 66, on outside of belt. 67-68. BELT LACING.—In this style the straight side shouldrun next the…
