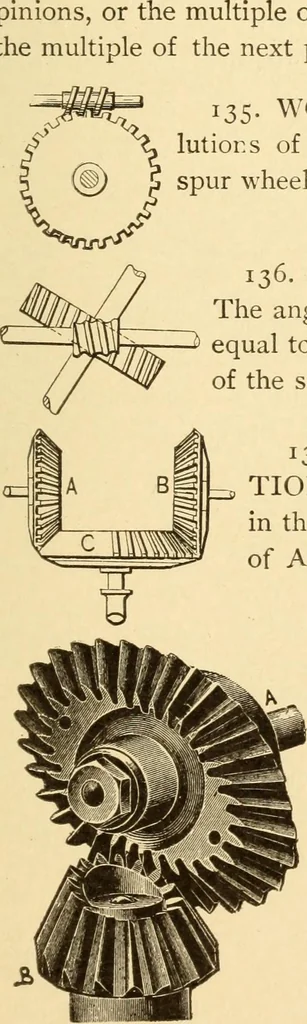

pmions,the mult … 132. OBLIQUE SPUR AND BEVEL GEAR. —An oblique tooth spur gear and an obliquebevel gear, operating shafts running at an angularposition. 133. OBLIQUE BEVEL GEAR on shafts atright angles and crossing out of axical plane. 134. GEAR TRAIN—Solution for increased speed: Divide the multiple of the number…
