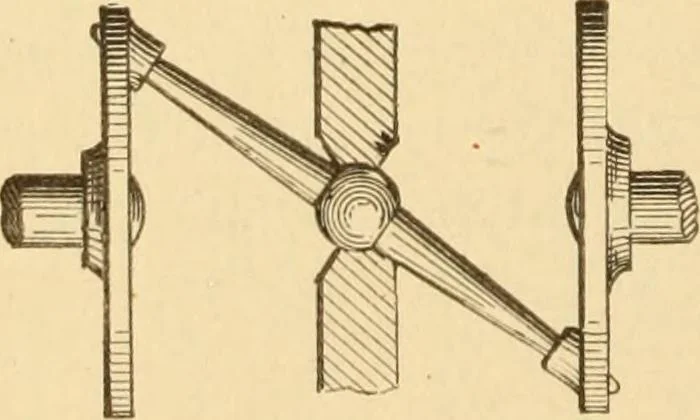

138a. PARALLEL AMOTION ofpliers. The jaws are double pivoted atequal distances from the center pivot ofthe handles. 138^. TRANSMISSION OF CIR-CULAR MOTION by link and slidingblock. Block is fast on link at half dis-tance for equal crank lengths. 138c. REVERSING LEVER withrack sector and worm gear.…
