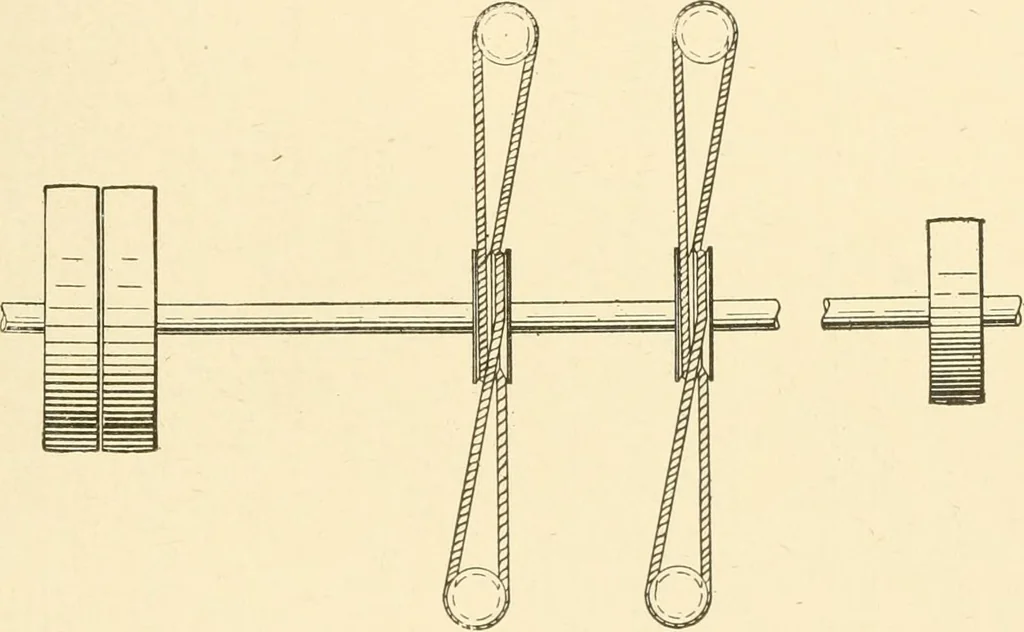

)ower to the building motion inside the lowerpart of the machine as in Figs. 4 and 5. In a bearing fastened to … Fig. 3. Spindlo Drive Showing Pulleys and Bauds. the end of the frame is a jackshiift on which, outside the end frameand close 1)eside tlie belt pulley, is a pinion gear mesliing mto awheel gear that drives, on its shaft inside the frame, an unusualarrangement of gears — double gears — so arranged…
