Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox (1914)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 55

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox, 1914, leaf 55

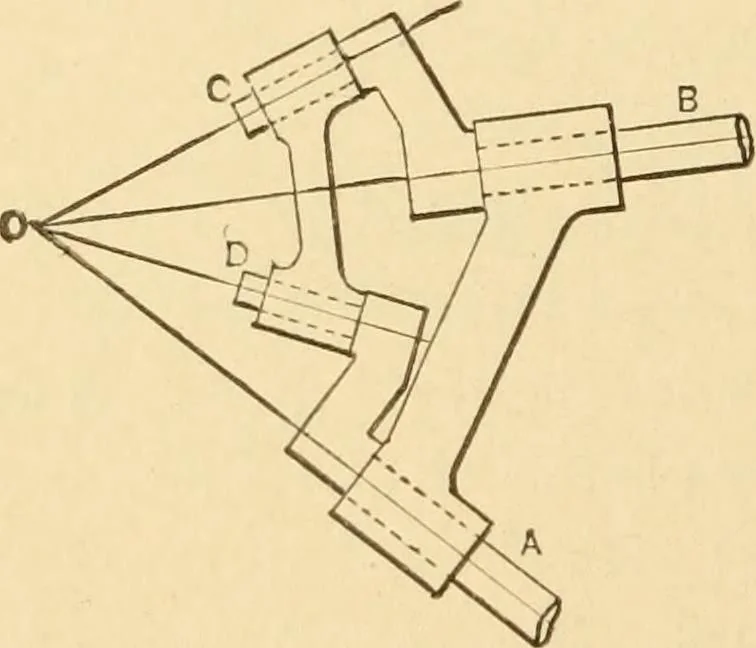

138a. PARALLEL AMOTION ofpliers. The jaws are double pivoted atequal distances from the center pivot ofthe handles. 138^. TRANSMISSION OF CIR-CULAR MOTION by link and slidingblock. Block is fast on link at half dis-tance for equal crank lengths. 138c. REVERSING LEVER withrack sector and worm gear.… … maaelever. 138J. TRANSMISSION of recipro-cating motion into rotary motion by diag-onal crank pins and yoke connecting rod.A sliding swivel on the cross head accom-modates the swing of the yoke connectingrod. I38£. LINK TRANSMISSION ofshaft motion, or conic link work. Theprinciple consists in making…
