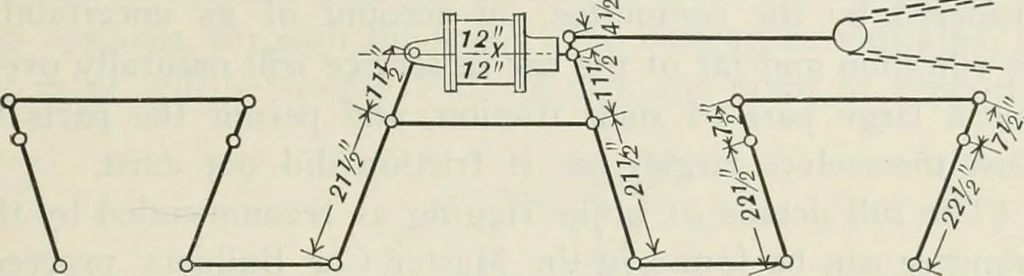

vers, or their equivalents. Usually the *Teiider and truck cylinders 8 inches in diameter use a 10 by 24inch auxiharv reservoir. BRAKING. 321 piston rod takes hold of a lever of the first and second ordercombined, which lever by means of rods, operates levers of thethird order. The forces in the… … Fig-. 81. the M. C. B. committee for a tender having a light weightof 59,000 pounds. The brake cylinder is 12 inches by 12inches, giving at 60 pounds air pressure, 6,700 pounds uponthe piston, and as there are four brakebeams we have thetotal shoe pressure for the eight wheels 6,700 X iiA X 30X4 =…
