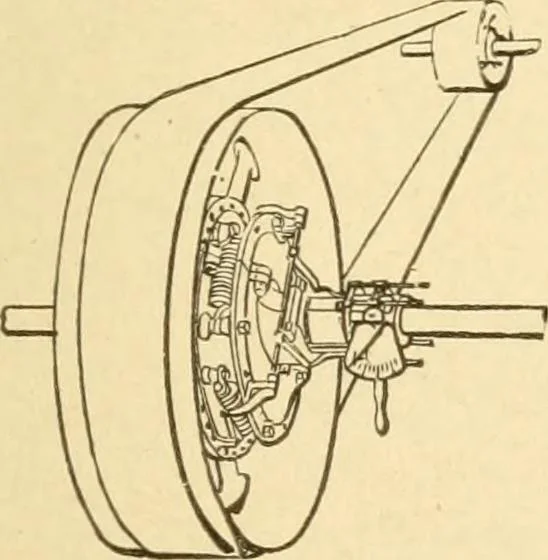

resisted by the helical springs anddial F indicates revolutions. 144. NEERS ROTARYTRANSMITTING DYNAMO-METER.-A shaft is disconnecterat a coupling and the discs A andB are clamped one to each shaft.Chains are attached to the discA and roll around pulleys on thedisc B, and are attached to thespider… … 145. VAN WINKLES POWER METER.—A set of helical springs attached to two discs,one of which is made fast to the pulley, unkeyedand loose on the shaft; the other disc and hubare clamped to the shaft. A set of levers on a rockhaft transmits the strain on the springs to an in-dex and dial indicating the…
