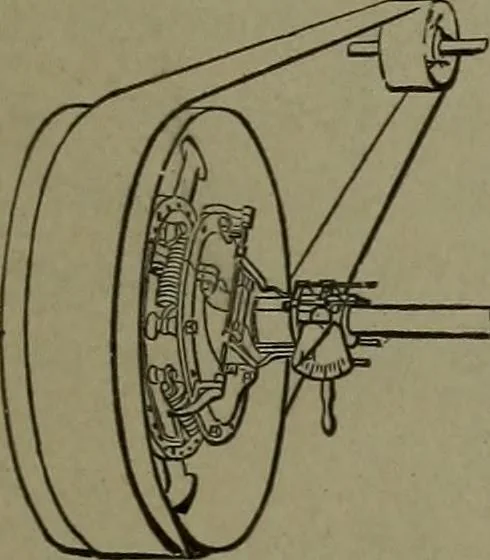

145. VAN WINKLES POWER METER.—A set of helical springs attached to two discs,one of which is made fast to the pulley, unkeyedand loose on the shaft; the other disc and hub- are clamped to the shaft. A set of levers on a rockhaft transmits the strain on the springs to an in-dex and dial indicating…
