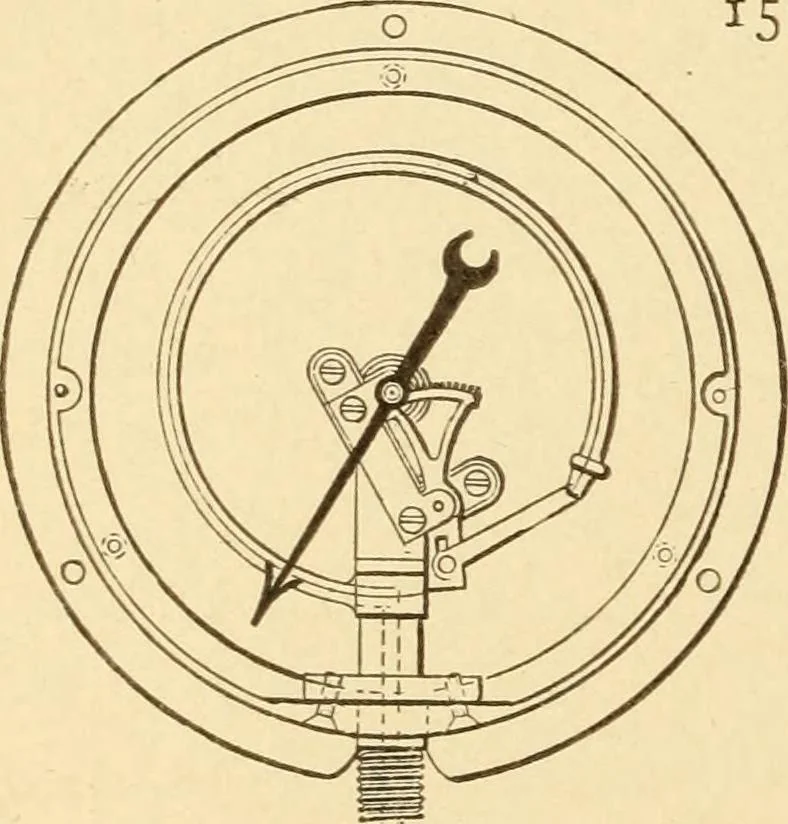

150. BOURDON PRESSURE GAUGE.-A flattened spring metal tube is bent toa circular form. One end is fixed to theinlet stud; the other end is connected toa lever sector by a lirlk. The sector ismeshed with a small pinion on the arborcarr}dng the index hand. A hair springattached to the arbor keeps all…
