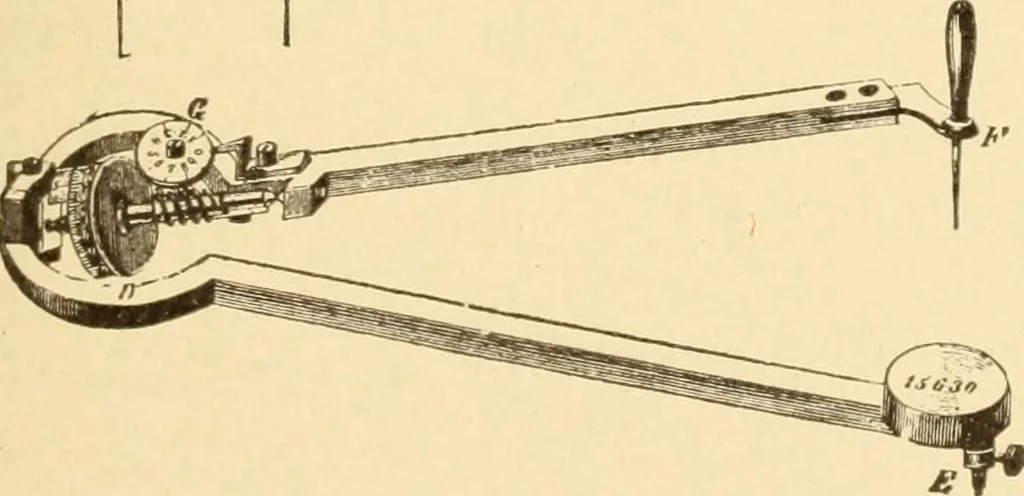

TOR.—The curved slot is made proportionalto the length of the two arms of the pencil lever. 155. AMSLERPLANIMETER.—E is the fixedpoint; F the tracer. Thedisc has a sharp edge anda cylindrical section dividedand read from a vernier scale.A worm screw and indexwheel indicate the number of revolutions…
