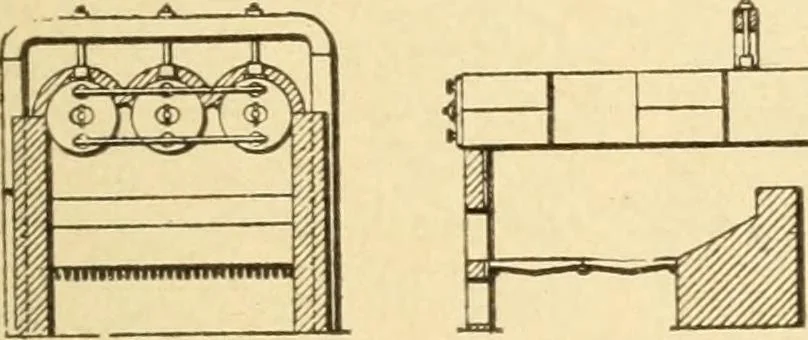

172. STEVENS BOILER.— An early type of tubular boilers(1806). The principle is still in use- ?^ H H … h: 173. PLAIN CYLIN-J 1 DRICAL BOILERS, s h o w i n ga. suspension and setting. One-half the surface of the shells, divided by 10,equals boiler horse-power. g II H H H-izd 174. HANG-ING WATERDRUM CY-LINDRIC.\LBOILER.— The drum, hanging from the main boiler by necks, gives a large in-crease of…
