Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox (1914)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 71

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox, 1914, leaf 71

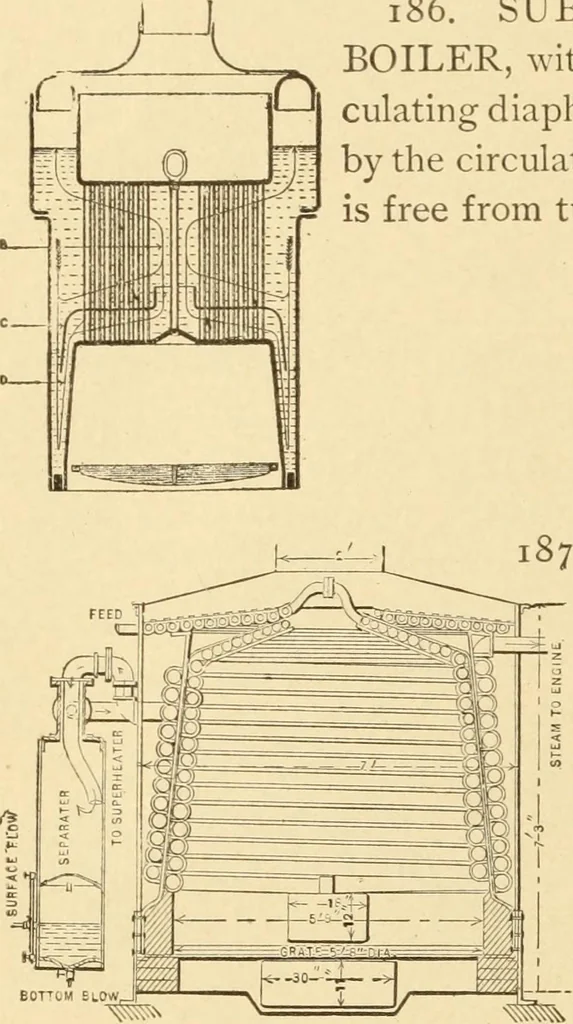

horse-power. 183. DION VEHICLE BOILER.—A central water and steam drum enclosed withinan annular drum, and connected by short in-clined tubes. A light and quick-firing boilerfor a motor carriage. 184. BABCOCK & WILCOXWATER TUBE BOILER.—Inclined straight tubes expanded in vertical steelheaders,… … 186. SUBMERGED- HEAD VERTICALBOILER, with enlarged water surface, and a cir-culating diaphragm by which the fire head is sweptby the circulation of the water. The central spaceis free from tubes to facilitate circulation. *HERRESHOFF BOILER.— A horizontal volute coil at thetop acts as a heater. The…
