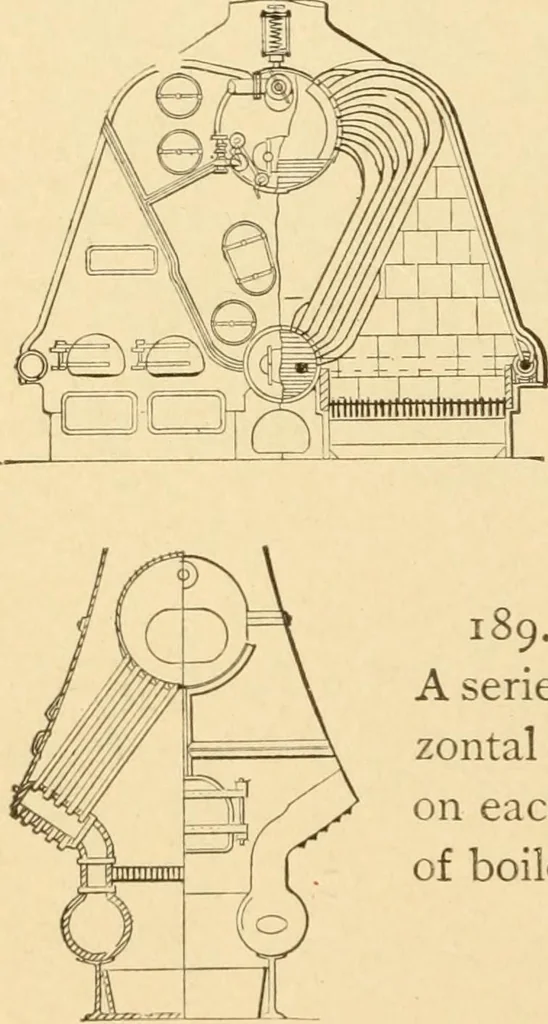

186. SUBMERGED- HEAD VERTICALBOILER, with enlarged water surface, and a cir-culating diaphragm by which the fire head is sweptby the circulation of the water. The central spaceis free from tubes to facilitate circulation. *HERRESHOFF BOILER.— A horizontal volute coil at thetop acts as a heater. The… … 188. THORNYCROFT BOILER.—A large steel drum above and a waterdrum below, connected with a large num-ber of bent tubes. The water return isthrough a large tube at the rear end ofthe boiler. 189. SEE WATER TUBE BOILER.— A series of short straight tubes connecting a hori-zontal steam drum with a…
