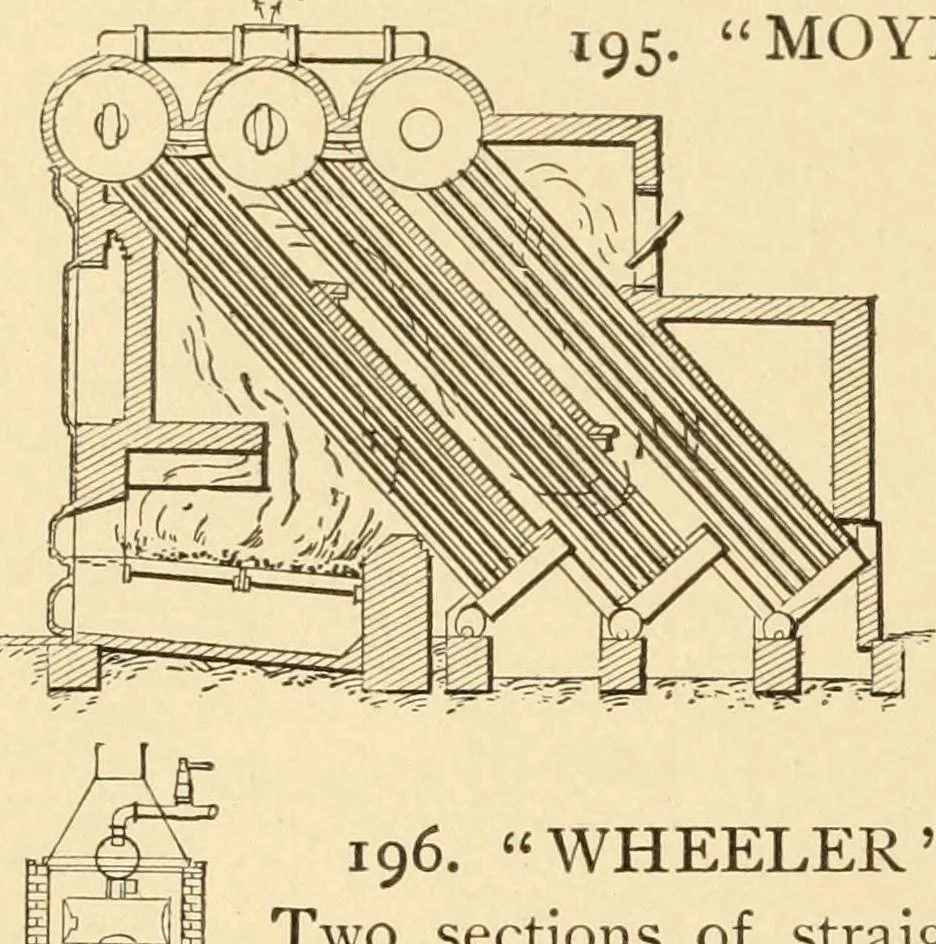

192. « HAZELTON BOILER.—A central^ vertical drum in which tubes, with closed ends,^.-^ are screwed radially. The grate is beneath the^^-^ radial tubes and around the base of the drum. 193. CLIMAX BOILER.—A centralvertical water and steam drum, with bent^^^ tubes expanded in it, and inclined to… … MOVES WATER TUBE BOILER.— The inclined tubes are in threegroups, set in three steam drumsabove and three water-heads be-low. Partitions divide the groupsof tubes to deflect the flame overthe whole surface. 196. WHEELER VERTICAL TUBE BOILER.— Two sections of straight vertical tubes, with…
