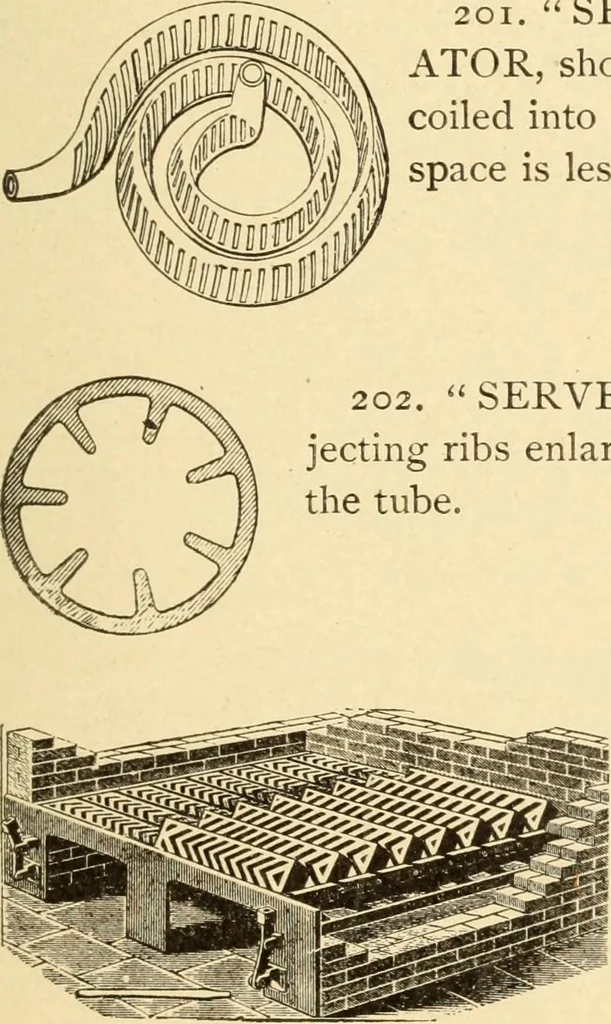

TRICYCLE.—The steamI generating surface is madeof iron pipe, flattened andcorrugated, then coiledinto a volute form with theinner end turned up, and the outer end to project through the furnace shell. The cuts show a vertical section and horizontal plan. 201. SERPOLLETS STEAM GENER-ATOR, showing… … 203. SHAKING AND TIP-PING FURNACE GRATE, Tupper model. Each sectionrocks on trunnions by a handlever and connecting bar.
