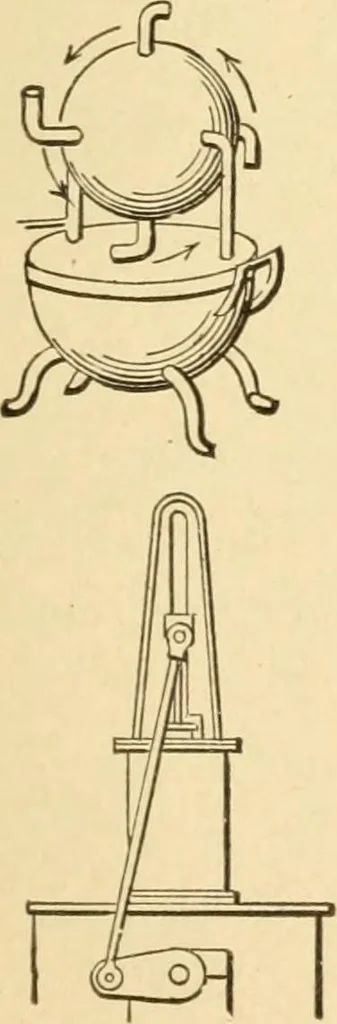

ifferential tension of the spring upon open-ing the valve, thus causing the valve to open widewithout increase of boiler pressure. 218. SAFETY VALVE,—Lever is of the third order. A, Short lever;B, centre of gravity of lever from ful-crum ; C, distance of weight from ful-crum ; S, diameter of valve;… … 219. ORIGINAL FORM of the yEolipile or HerosSteam Engine, 130 B.C. A reaction power, suitablefor operation by the use of any gaseous or fluid pres-sure. The original type of several modem motors. 220. STEEPLE ENGINE, with cross-head and slides. 68 STEAM POWER.
