Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox (1914)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 95

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox, 1914, leaf 95

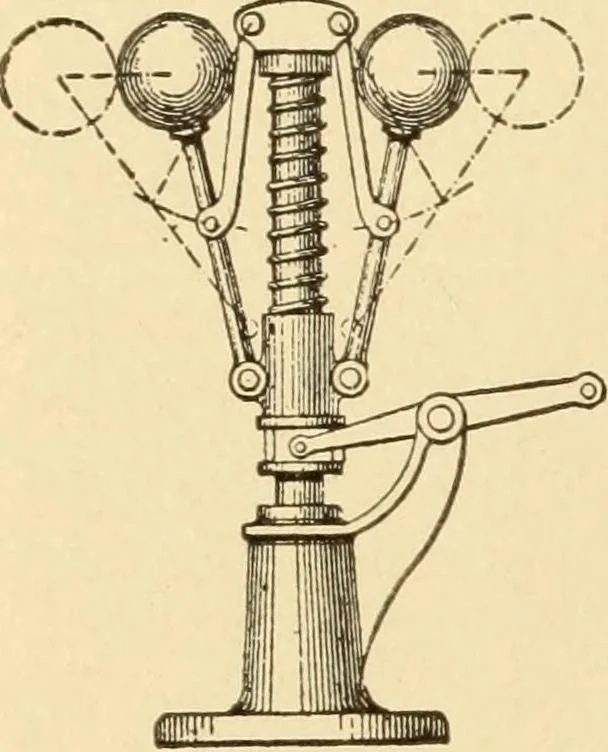

298. CENTRIFUGAL BALL GOVERNOR.— The balls, with arms pivoted to the revolvingspindle, through their connections raise or lower thegrooved sleeve on the lower part of the spindle.The yoke of the valve lever rests in the groove andthus controls the valve gear by the varying speed ofthe governor. … 299. INVERTED GOVERNOR.—The cen-trifugal force of the balls is resisted by a springaround the spindle. The extension of the ballslifts the lever spool through the toggle-jointmovement.

Mechanical movements
