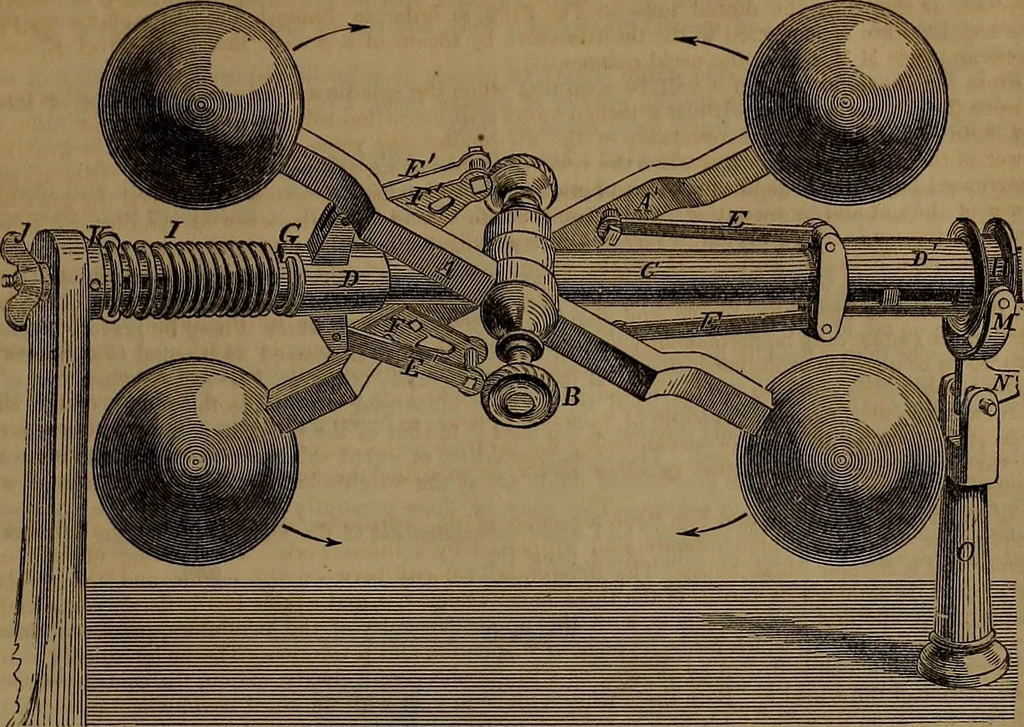

ft of the arms and rods,when the balls fly out, is always parallel to the shaft C. The centrifugal force of the balls is counteracted by the employment of a spiral spring I, to which the GOVERNORS. 927 sleeve D is attached, by means of clamps G. The tension of spring is increased or diminished at… … When motion is communicated to the spindle by the engine, the balls will have a tendency to fly outin the direction of the arrows, and to move the sleeves D D laterally. Sleeve D is furnished with acollar H, which is grasped by a forked crank M, pivoted to the standard 0. The lower branch of…
