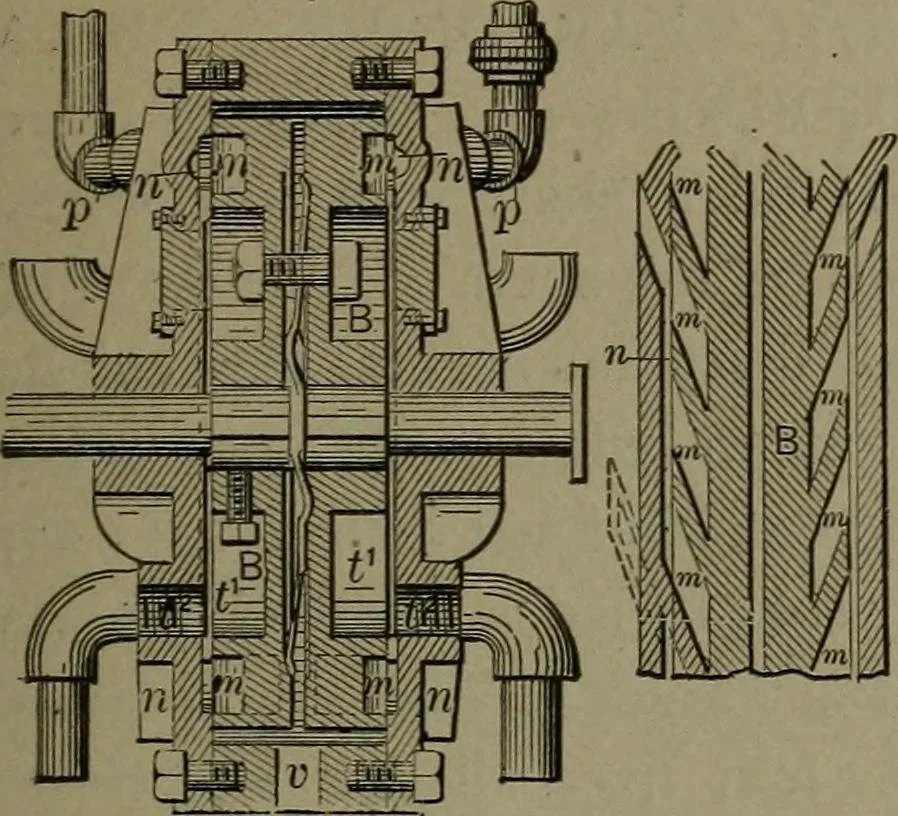

The innerpiston is connected to the crank pin,and moves vertically. The outer pistonmoves horizontally in the case. Theprinciple is similar to the Root SquareEngine, No. 362. STEAM POWER. 99 364. WILKINSONS STEAMTURBINE. —Two rim-pocketeddiscs running against the disc surfacesof a shell with… … 365. Section showing steam pockets. ^66. DOW STEAM TUR-BINE.—Two discs fixed to ashaft have on their face aseries of circular grooves andtongues, meshed with a pairof fixed discs with grooves andtongues, as shown in small sec-tion 367. The tongues onthe revolving discs are cut across at short…
