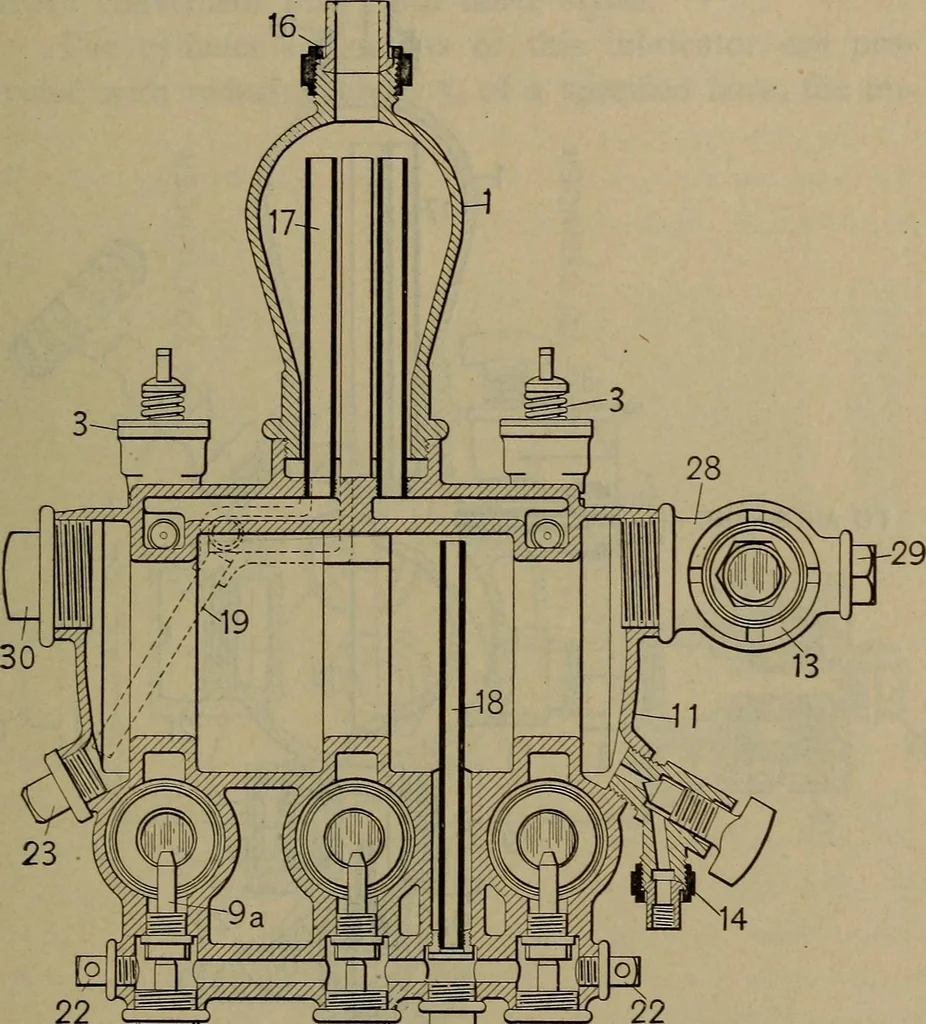

c c FRONT VIEW. FIG. 1—PLATE 33. LOCOMOTIVE LUBRICATORS. 127 Construction and Operation. Plate 32 shows a frontview and Plate 33 sectional views of the modern BullsEye lubricator, Nathan type. This instrument is madeto withstand the increased steam pressures used on mod- … P¥a Bkr dzu 24 en or mm mm mSm FIG. 2-PLATE 33.ern locomotives, and it may be safely relied upon underall conditions of service. Instead of the tubular glassesheretofore used, this type of lubricator is equipped with 128 LOCOMOTIVE LUBRICATORS. a new form of disk glass, which will not break under…
