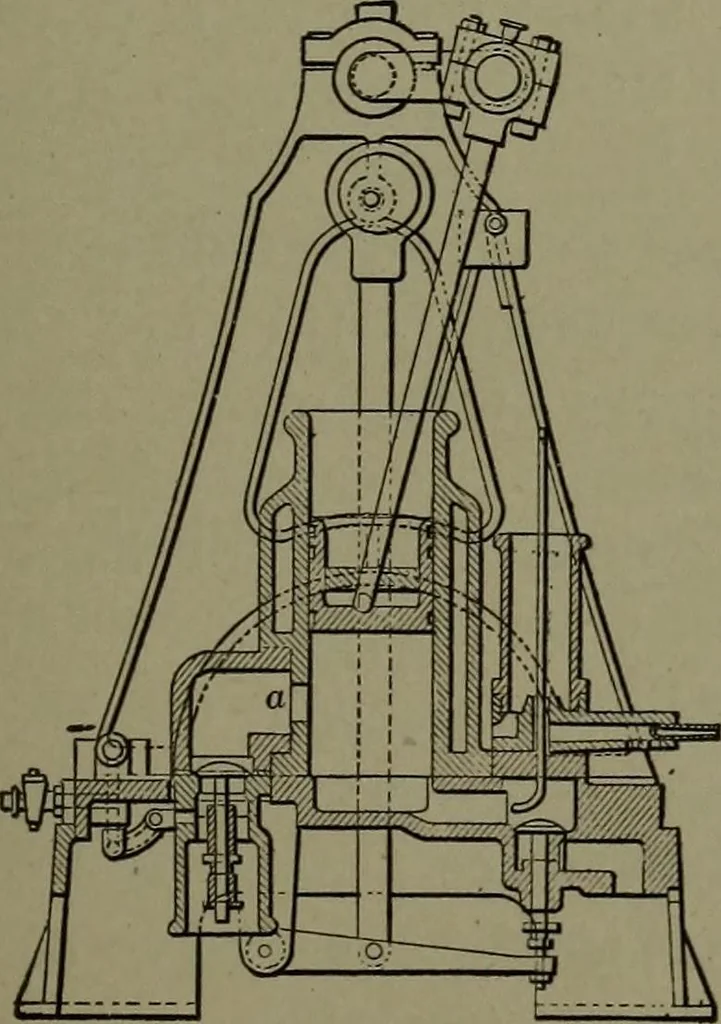

428. VERTICAL GASOLINE ENGINE, Webster pattern. The cylinder and waterjacket form part of the framework of the engine.A four-cycle type. … 429. VERTICAL GAS ENGINE, Root model. Four-cycle compressioawith double explosion. ^ is a second-ary chamber and port, closed abouthalf-stroke, shutting off part of the chargeduring compression, which is explodedduring the impulse stroke of the piston. I20 MOTIVE POWER. 430. VERTICAL KEROSENE OIL…
