Mechanical movements, powers, devices and appliances (1901)

Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 134

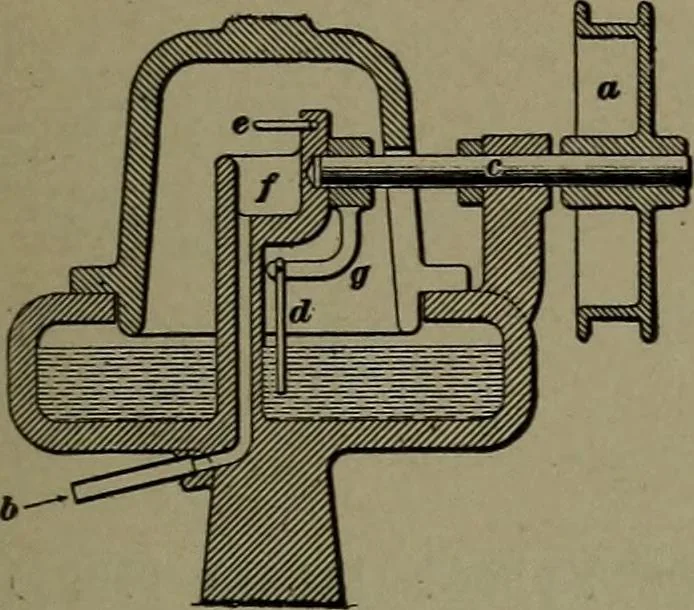

An illustration from Mechanical movements, powers, devices and appliances, 1901, leaf 134 — 447. CARBURETTERfor making air gas fromgasoline; non-freezing. A,plan — a zig-zag series ofchambers with spaces be-tween for air circulation tokeep its vaporizing wallsB, a vertical section ; r, <r, <r, open spaces. Canton or otherflannel wrapped over wire gauze frames is pushed into the… … 448. AUTOMATIC OILER.—Much in use on explosive motors. Shaft r, andcranky, with the dip wire d^ are revolved bya belt dropping the oil on the wiper e^ intothe small tanky, from which it flows to thecylinder.

Mechanical movements
