Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox (1914)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 136

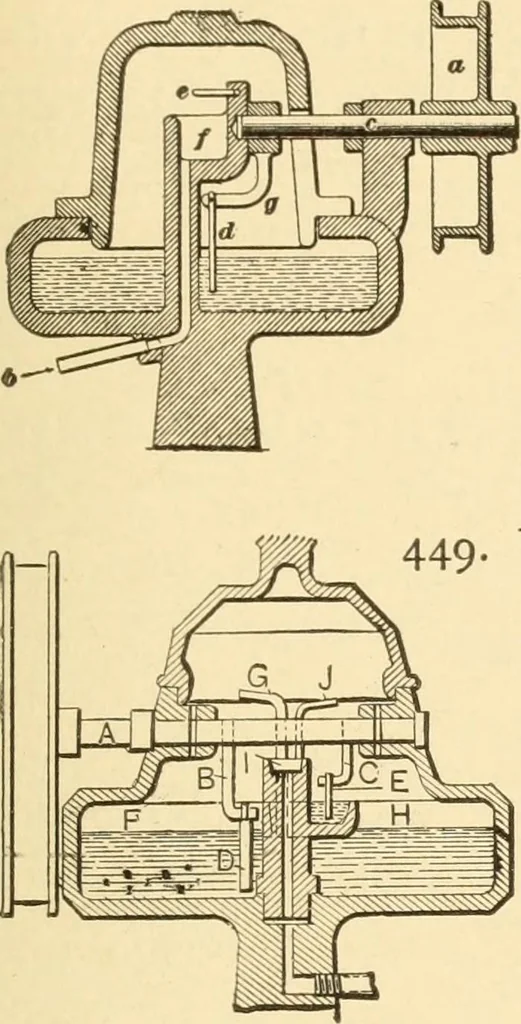

13% Y 447. CARBURETTERfor making air gas fromgasoline; non-freezing. A,plan — a zig-zag series ofchambers Avith spaces be-tween for air circulation tokeep its vaporizing wallswarm; B, a vertical section; c, c, c, open spaces. Canton or otherflannel wrapped over wire gauze frames is pushed into the… … 448. AUTOMATIC OILER.—Much inuse on explosive motors. Shaft c, andcrank g^ with the dip wire d, are revolved bya belt dropping the oil on the wiper e^ intothe small tanky*, from which it flows to thecylinder. UNIFORM AUTOMATIC OILER.—Used on gas engines. The shaft, driven by abelt from the…
Mechanical movements
