Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 134

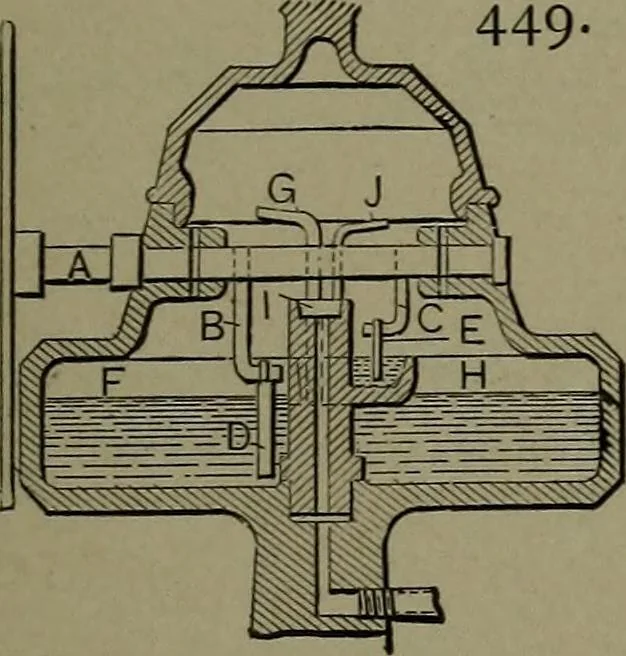

448. AUTOMATIC OILER.—Much in use on explosive motors. Shaft r, andcranky, with the dip wire d^ are revolved bya belt dropping the oil on the wiper e^ intothe small tanky, from which it flows to thecylinder. … UNIFORM AUTOMATIC OILER.—Used on gas engines. The shaft, driven by abelt from the valve-gear shaft of the engine,carries two hooks and dip wires, one ofwhich raises the oil from the variable levelbelow to a constant level oil reservoir, fromwhich the second hook and dip wire feedthe wiper that…
Mechanical movements
