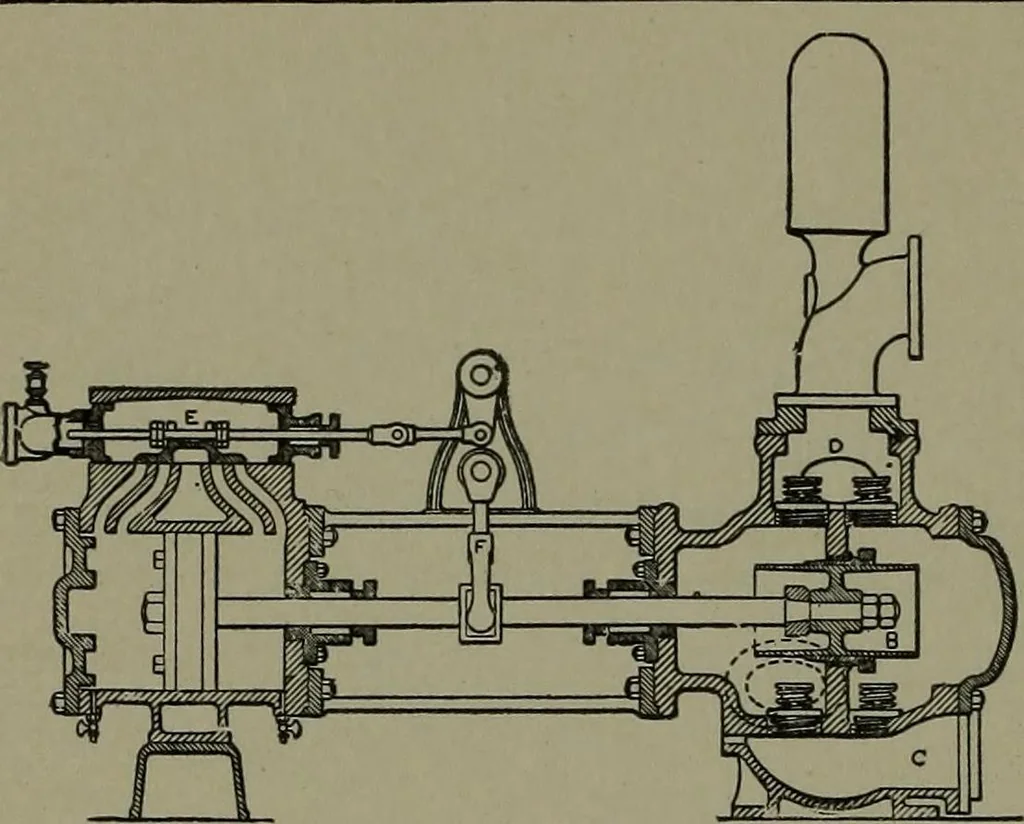

505. DEAN STEAMPUMP.—The valve gearof the Duplex pump. Alever and rock shaft, movedby a spool on the connect-ing rod, operates the valveof the opposite cylinder. for alternating the strokes of the pistons. 140 HYDRAULIC POWER AND DEVICES. … 506. WORTHINGTONDUPLEX PUMP. — Tworock shafts with arms movedby the opposite piston rodalternate the valve motionsand strokes. The water pis-ton is of the plunger form.
