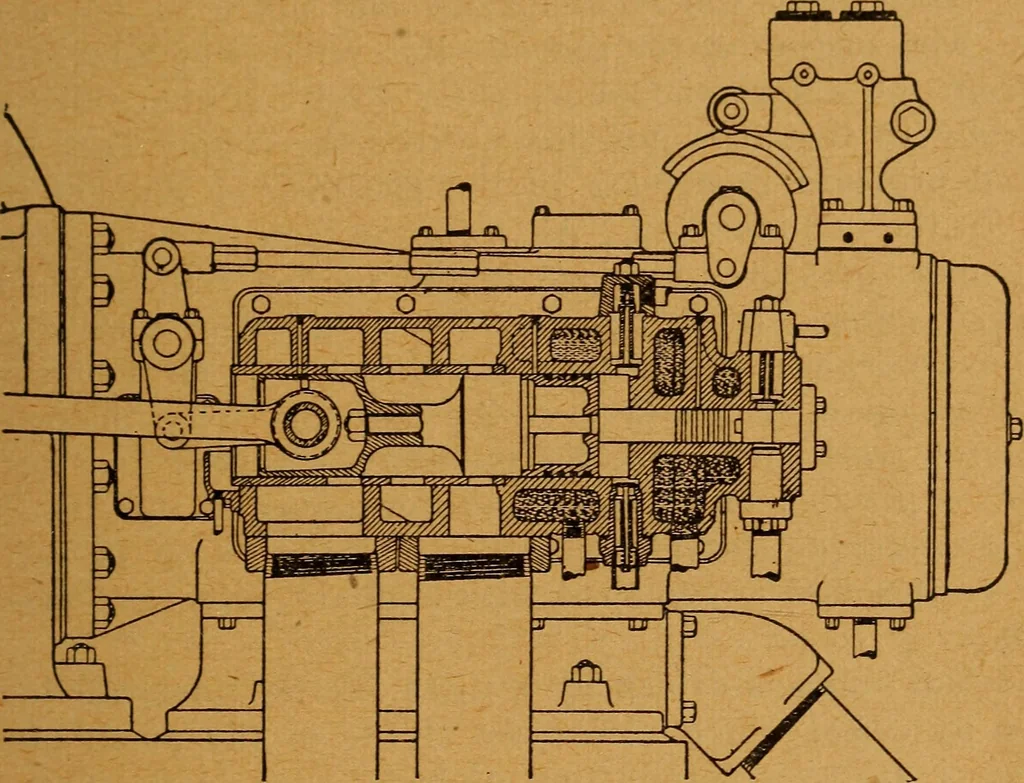

the initial compression inthe Elyria engine is performed by a differential piston whichacts in an enlarged portion of the cylinder bore. This con-struction increases the volumetric efficiency from 70 percent,in the case of the marine type, to well over 90 percent, and italso does away with the bad… … Fig. 78. Compressor Cylinder of Elyria Oil Engine. piston pin is carried by the differential piston which acts as across-head, taking all of the side thrust from the main piston.The working piston is easily taken from the cylinder by remov-ing the cylinder head and the four nuts that fasten it to…
