Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 163

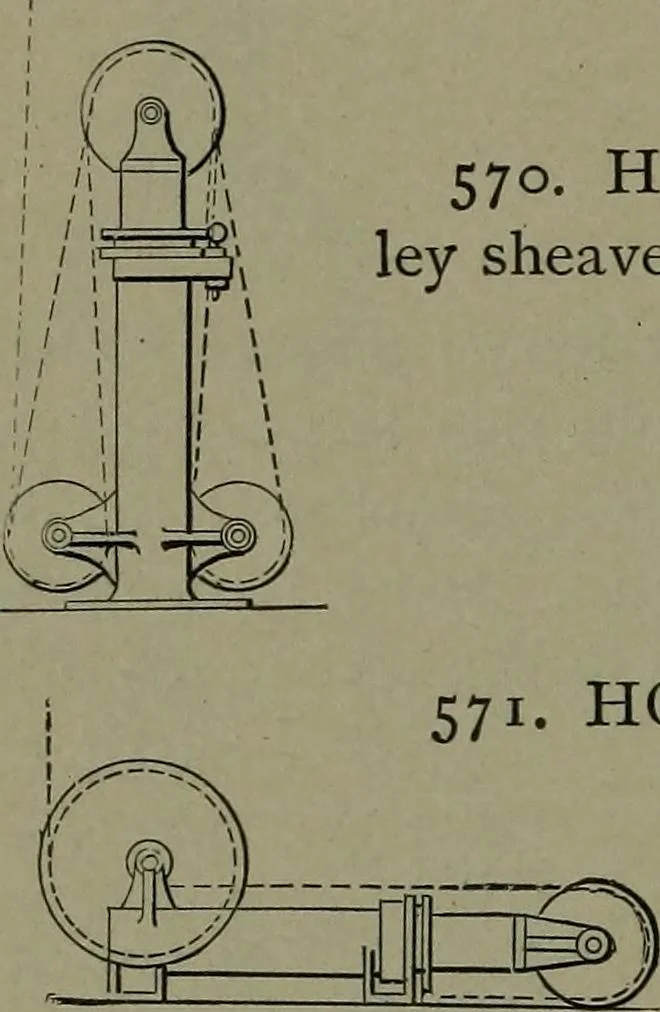

570. HYDRAULIC ELEVATOR LIFT with pul-ley sheaves central over plunger. HORIZONTAL HYDRAULIC ELEVATORLIFT, with central-plunger pulley. Cablewinds on small pulley on drum shaft. Forlight lift. 572. HYDRAULIC PULLING JACK. — The lever operates a ^—^ small pump which forces .,ffLW_L^;~-^ water to the…
Mechanical movements
