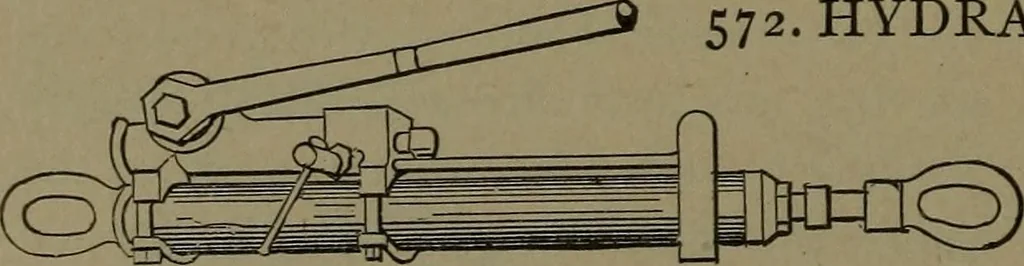

571. HORIZONTAL HYDRAULIC ELEVATORLIFT, with central-plunger pulley. Cablewinds on small pulley on drum shaft. Forlight lift. 572. HYDRAULIC PULLING JACK. ■— The lever operates a small pump which forces ^:::^ water to the upper side of the piston and draws the piston rod and ring. The small screw…
