Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 181

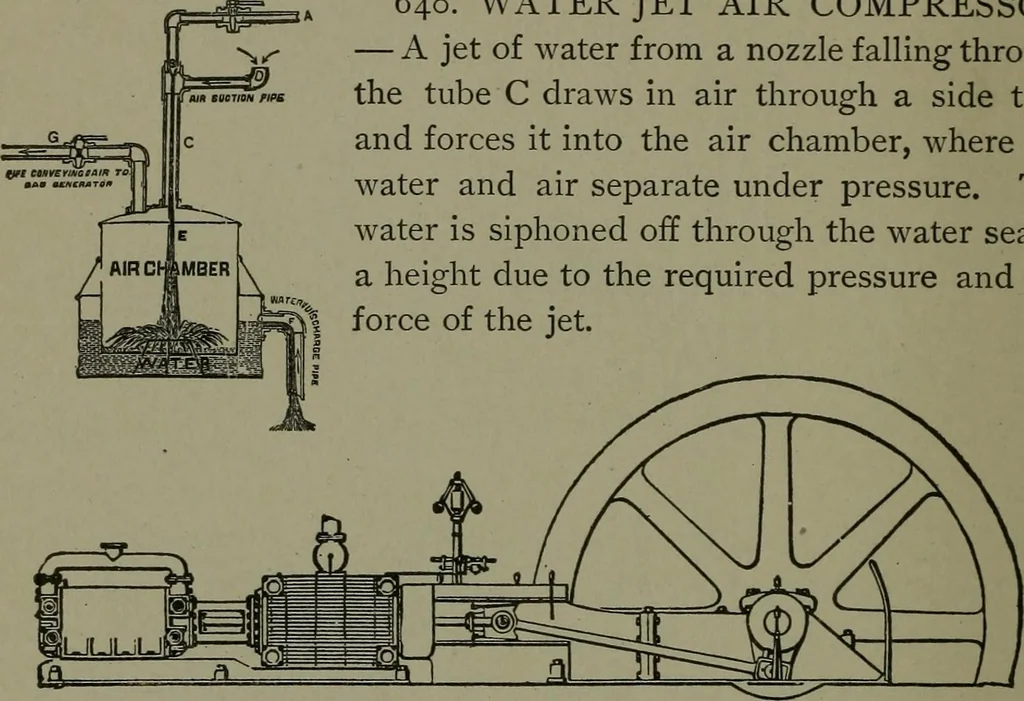

639. AUTOMATIC AIR COMPRES-SOR, Bennet model.Showing the valve gear ofa simple lever connectedby link to the eccentric. 172 AIR POWER APPLIANCES. 18, n.tcTim PIPS … 640. WATER JET AIR COMPRESSOR.— A jet of water from a nozzle falling throughthe tube C draws in air through a side tubeand forces it into the air chamber, where thewater and air separate under pressure. Thewater is siphoned off through the water seal ata height due to the required pressure and…
Mechanical movements
