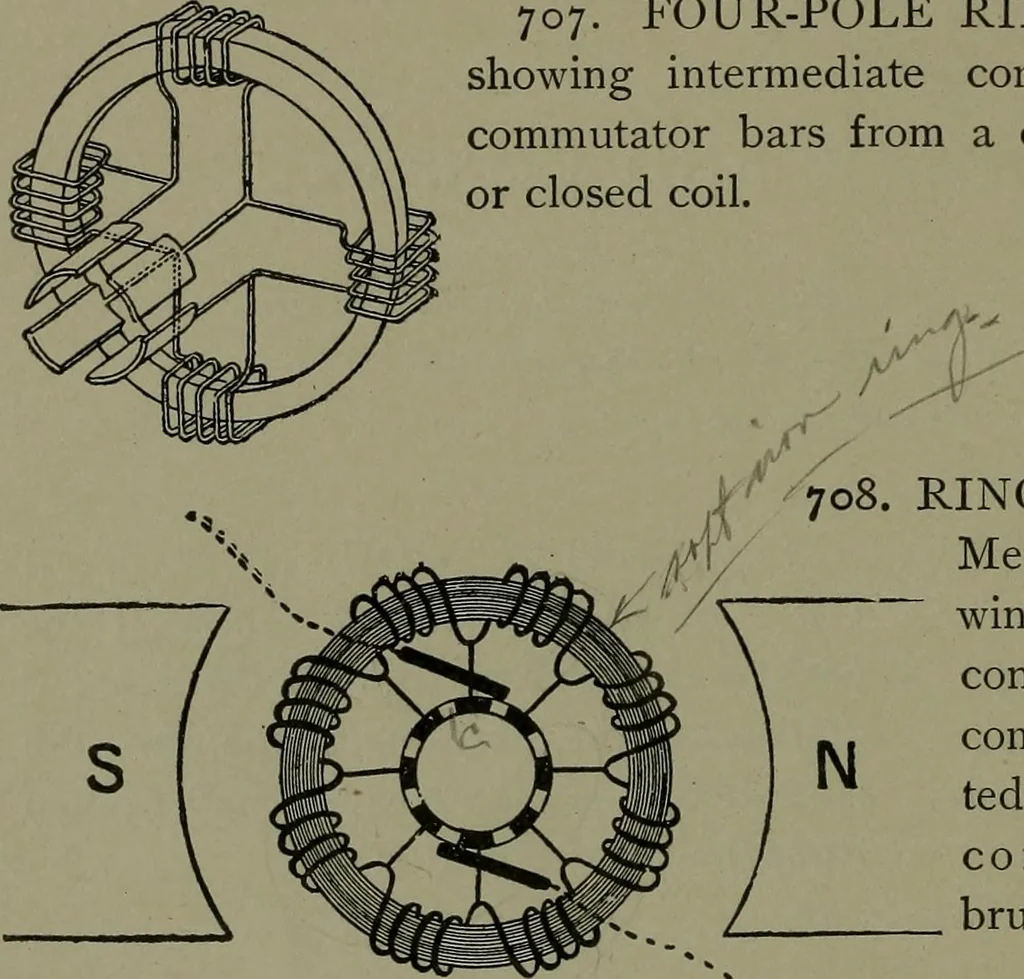

706. ELECTRIC GENERATOR CONSTRUCTION. —Shunt winding, in which the field winding is in parallelwith t he armature winding and connected with the circuitat the brush holders. A, Armature; C, commutator; band b\ brushes ; a, c, field connections ; S, field winding. I9C ELECTRIC POWER AND… … 708. RING ARMATURE.— I^V/ Method of continuous winding and sectionalconnections with thecommutator. The dot-ted linss are the circuitconnection with thebrushes.
