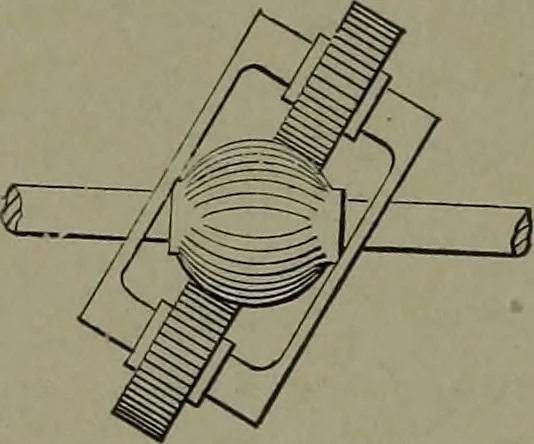

oth of its gear.. 930. ACCELERATED CIRCULAR MO-TION by a volute gear. The pinion P andguide disc R move along the feathered shaft C,following the rail guide, and returns by reversalof the motion of the driving shaft C. 931. ROLLER-BEARING GEAR TEETH.—A double-flanged wheel with… … 932. BALL GEAR with traverse pinions. Hasa very limited traverse of the pinions. iins 933. SPIRAL GEARING.—V gearing, in whichthe teeth are at a small angle with the plane of rota-tion, makes a perfectly silent transmission of power.
