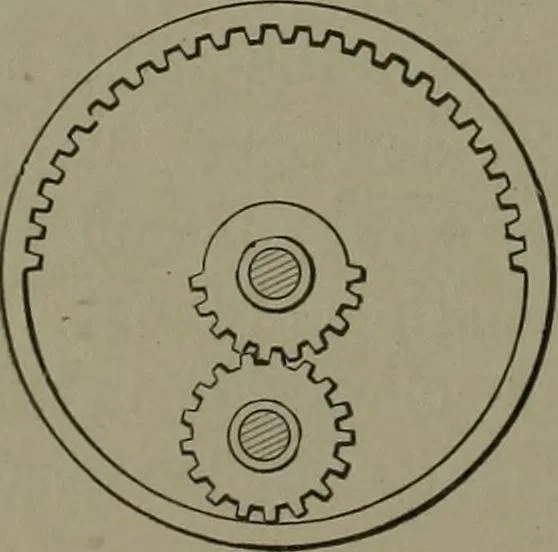

944. CAPSTAN GEAR.—The central pinion isfast to the shaft. The intermediate pinions are ona frame free on their own axes, but the frame is fixedto the winding drum. The gear ratchet ring runsfree on the shaft, but is stopped by a pawl on thedrum for quick speed and by the outside pawls fora slow… … 945. SLOW FORWARD AND QUICK BACKcircular motion from the continuous circular mo-tion of a pinion, driving an internal sector pin-ion and an external sector gear. GEARING. 241
