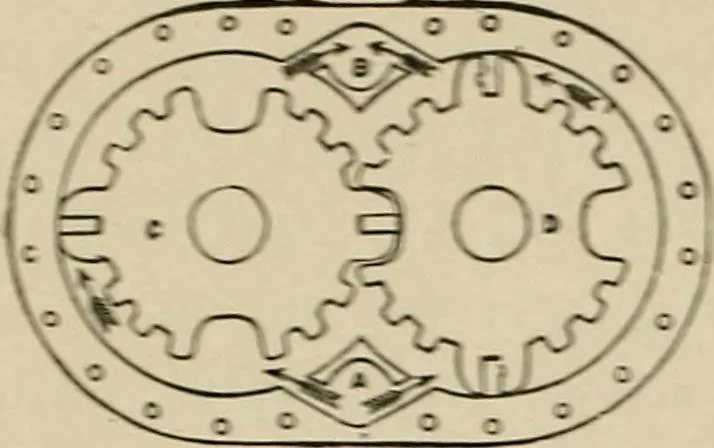

340. RITTER ROTARY EN-GINE.— A revolving cylinder concen-tric with the shell, carrying an abuttinglip or extension fitting the outer case.A revolving lunette controlled by gearon main shaft allows the lip to pass; acontinuous gear train operates thevalve. 341. Exterior with valve gears. <iS … lire rotates 342. HOLLY ROTARY ENGINE.— The two geared pistons mesh their longteeth into the recesses of the opposite piston,thus making the sum of the radii betweenthe centres less than the sum of the radiifrom each centre to its cylinder wall. Press-r in the direction of the longest leverage.
