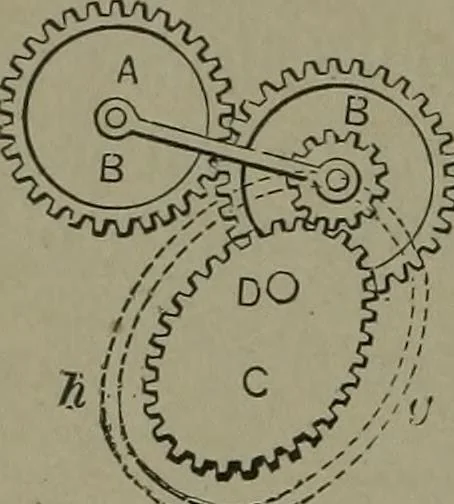

ING. 952. IRREGULAR CIRCULAR MOTIONfrom an elliptically eccentric erear train. C is the ^Vs^B^^^^ )| elliptic driving wheel turning with the shaft at D, B is the intermediate gear with a pinion follower tothe eccentric gear C. A and B are attached by anarm pivoted on their respective shafts, so… … ALTERNATING RECTILINEARMOTION by the revolution of a sec-1 tor by which one revolution producesboth motions. The curved back ofthe sector just touches the extendedtooth of the rack frame at d, while the teeth at e and b are partly inmesh with the enlarged sector end teeth, thus preventing…
