Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 283

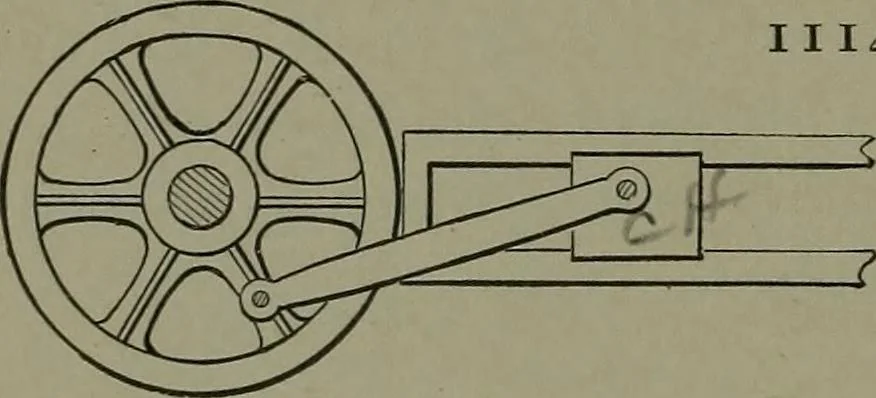

1112. SPRING LATHE-WHEEL CRANK.—The spring A is intended to keep the crank oifthe dead centre. A counterbalance weight isalso used for the same purpose. 1113. BROWNELL CRANK MOTION.—The wrist pin is fixed on a tangent slide held in itsforward position by a volute spring attached to theface plate.…
Mechanical movements
