Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 239

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 239

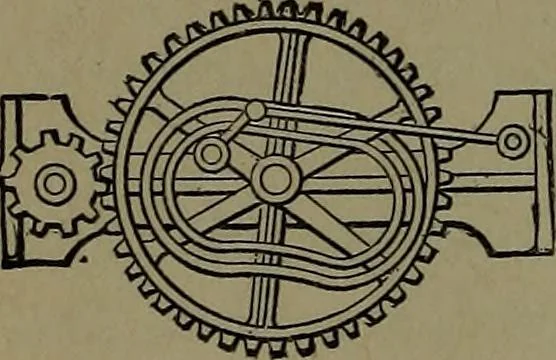

900. MANGLE RACK with stationary pinion.The rack and slot frame are jointed to the manglebox, riding in mesh with the pinion by the slotguide, leaving the mangle box free to ride and tipon the rollers. … 901. ALTERNATE CIRCULAR MOTION from continuous motion of geared wheels. Agrooved cam revolving with a geared wheel pro-duces a variable or alternate motion to a crank,through a pin in the groove connected to the crank and to a fixed point by a connecting rod.
