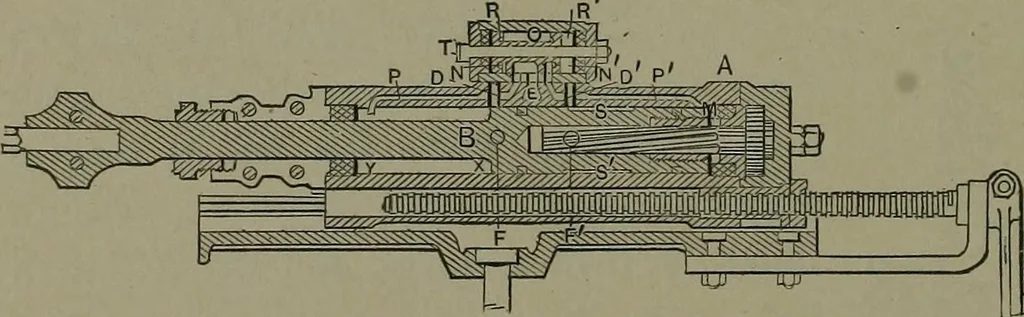

ll. The ports are radial,and are opened and closed by theswing of the valve on its centre.The valve is thrown by the shoul- ders on the piston, striking the valve arms. Sergeant model. 1201. ROCK DRILL, with balanced piston valve, which isthrown by compressed air inlet through ports opened by the…
