Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 312

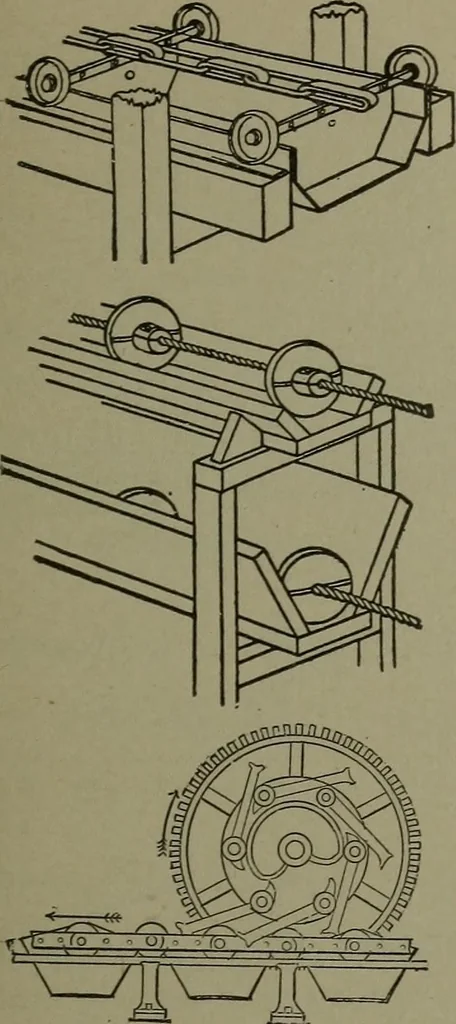

MINING BUCKETSAND SKIP. 1220. d^ Cornish kibble. 1221. r,Hoopedstraightbucket. 1222. /;, Water bucket. 1223. <;z. Tram skip. 1224. BELT CONVEYOR.—A seriesof horizontal and inclined rollers serve toturn up the edges of a belt, enabling thematerial carried to be retained on the belt;the belt… … 1225. CHAIN SCRAPER CON-VEYOR.—A chain supported on rollersand axles to which scrapers are fixedthat fit the conveyor trough. 1226. CABLE CONVEYOR.—Discsfixed to a cable running in a trough andreturning overhead. again into position for their next push 1227. DRIVING MECHANISM for acoal or grain…
Mechanical movements
