Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 238

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 238

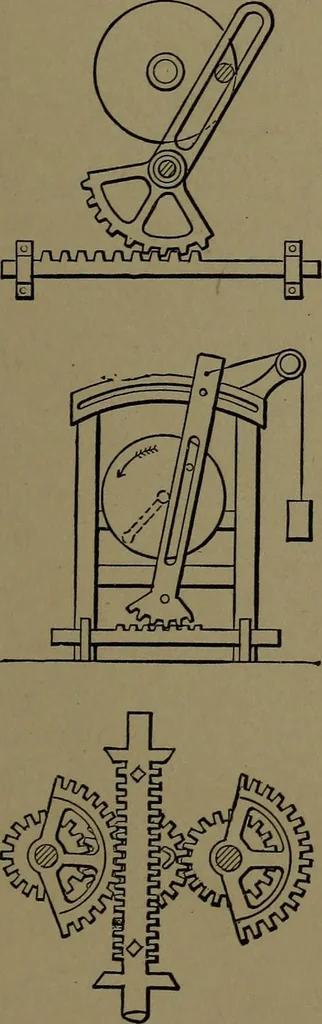

894. QUICK BACK MOTION given to arack slide by a sector gear and slotted arm;operated by a pin in a revolving face plate. 895. ALTERNATE RECTILINEAR MaTION from a swinging lever with sector andrack. The lever has a quick return motion,operated by a wrist pin on a face plate, andLI free from…
