Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 313

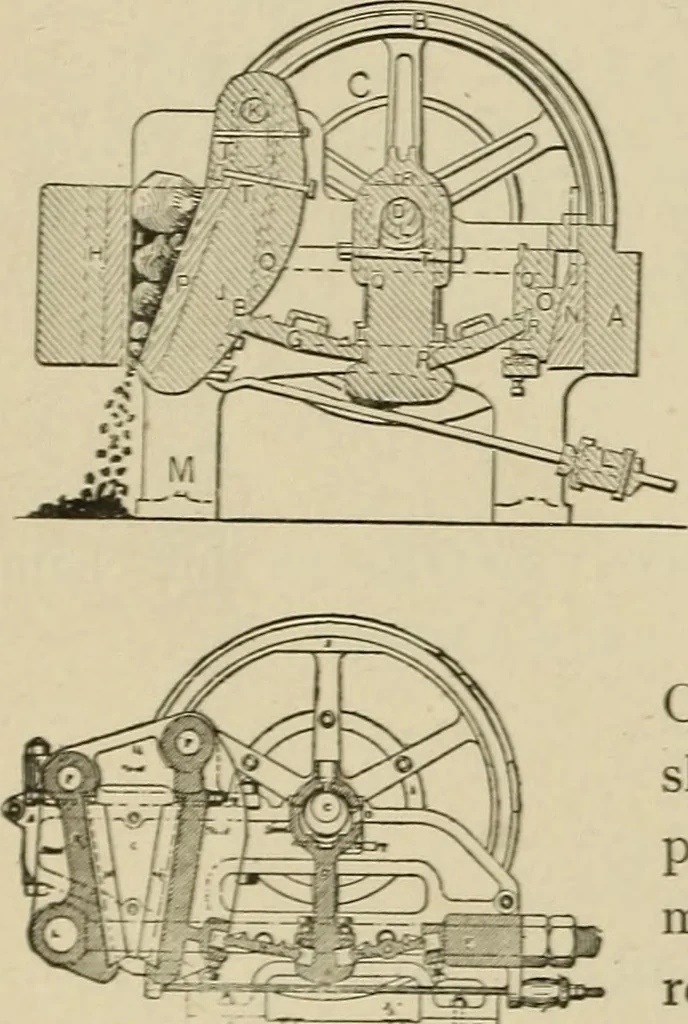

1232. TOGGLE JOINT, for a .stone breaker. … 1233. STONE CRUSHER.--Thepower is transmitted from tne drivingshaft by a cam operating a vertical con-necting link and toggle joint •• Blake pattern. 1234. BUCHANAN ROCKCRUSHER.—An eccentric on the drivingshaft and toggle arm gives a powerfulpressure to the crusher jaws. The adjust-ment is made by…
Mechanical movements
