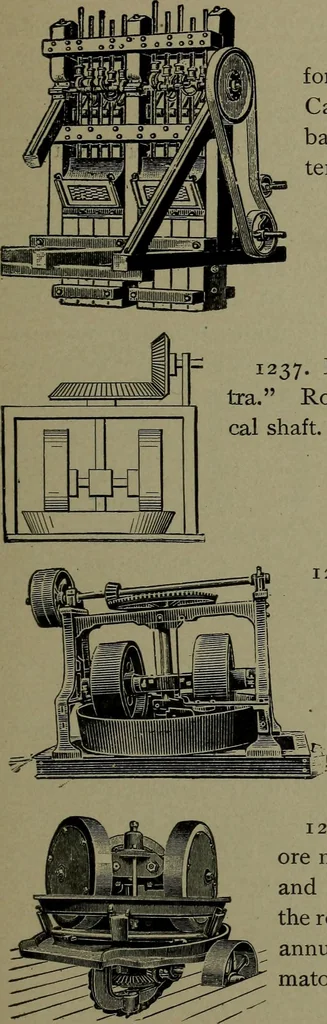

1233. STONE CRUSEER.-Thepower is transmitted from tne drivingshaft by a cam operating a vertical con-necting link and toggle jointo Blake pattern. 1234. BUCHANAN ROCKCRUSHER.—An eccentric on the drivingshaft and toggle arm gives a powerfulpressure to the crusher jaws. The adjust-ment is made by the… … 1236. EIGHT-STAMP ORE MILL,for pulverizing gold quartz or other ores.Cams on a power-driven shaft lift thebars successively to equalize the belttension. 1237. ROLLING CRUSHER.—The Aras-tra. Rolling wheels on a cross arm of a verti-cal shaft. 238. ARASTRA ORE MILL.— Two heavy rolls revolving in a…
