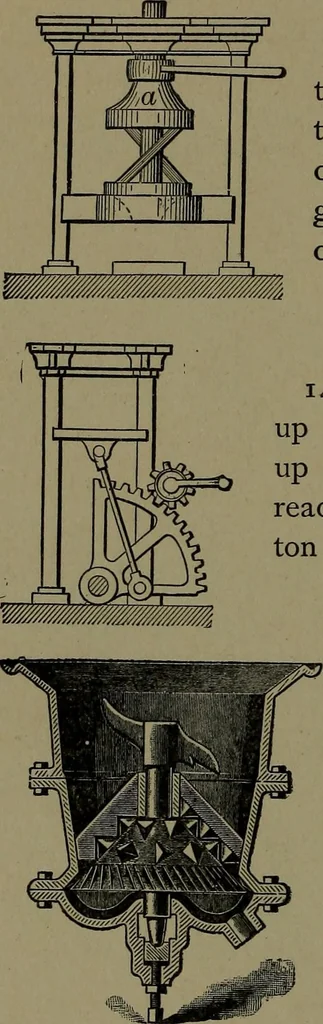

1433. STEAM COTTON PRESS, forrepressing and condensing baled cotton.The geared sectors, driven by the double-rack piston rod and piston, increase thepressure immensely at the latter part oithe stroke by the toggle-joint action ofthe connecting rods as they approach theradial bearing of the sectors.… … 1434. TOGGLE-BAR PRESS.—The rota«tion of the disc a by the lever handle bringsthe toggle bars to a vertical position, with in^creasing pressure upon the platen. The tog-gle bars have spherical ends fitted to sphericalcups in the top and bottom discs. 1435. SECTOR PRESS.—The sector is rolledup by…
