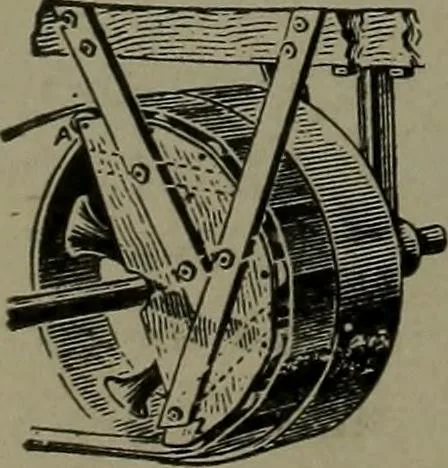

SPEED TRANSMITTING DEVICE.— Two discs drive the speedshaft, between which andthe driving disc are tworollers pivoted to trans-verse spindles. The rol-lers are kept to their slow-speed position between thediscs by springs. A con-necting rod draws the rol-lers toward the high-speedposition. Friction… … 1325. BELT HOLDER, Wellington^model. Does away with a loose pulley. Thebelt is guided on to a set of rollers in a fixedframe at the side of the driving pulley. Savestime and avoids danger in putting on belts. MILL AND FACTORY APPLIANCES. 325
