Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 343

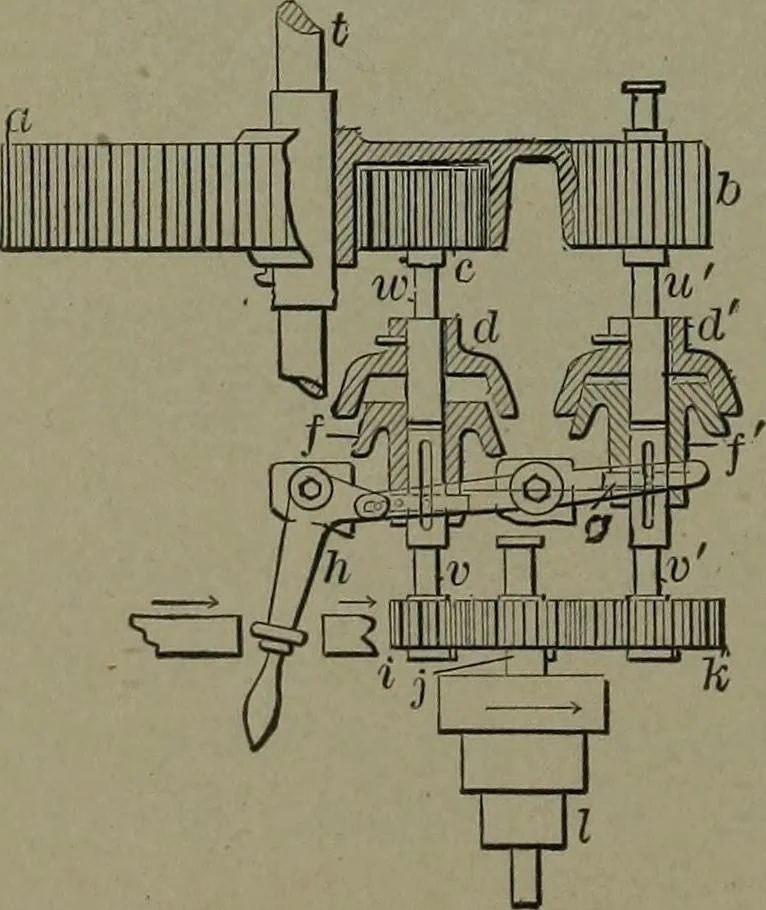

1381. GEAR TRAIN, f g with quick return, for a gear-I cutting machine. … 1382. QUICK RETURN MOVEMENT for a cutter head. A constant rotation of the camoperates the bell-crank sector, which is quicklydrawn back by the weight W and pinion C. 1383. REVERSING GEAR, from asingle belt and cone pulley. The gearwheel a has an outside and inside set ofteeth with the pinions b, c…
