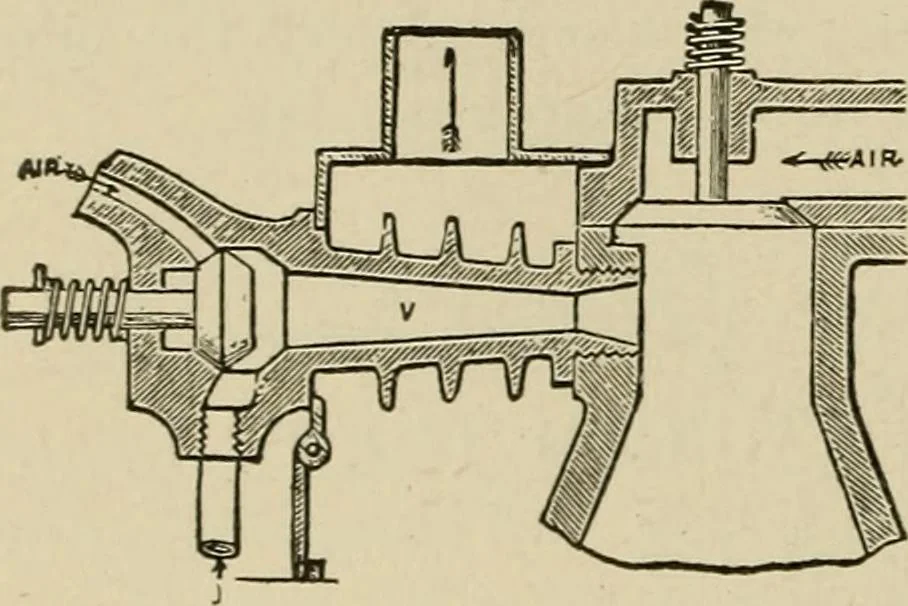

INE VALVE GEAR.— E, Inlet valve; F, exhaust valve. Valvesare operated by a bent lever, with slidingroller H and double cam C, which by agroove rides the roller alternately on to thecams. 446. GASOLINE VAPORIZER. — The inlet nozzle, Y, is ribbed onthe outside and is enclosed in achamber through… … 447. CARBURETTERfor making air gas fromgasoline; non-freezing. A,plan — a zig-zag series ofchambers with spaces be-^K tween for air circulation tokeep its vaporizing wallswarm; B, a vertical section ; c, c, c, open spaces. Canton or otherflannel wrapped o\er wire gauze frames is pushed into the…
