Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 39

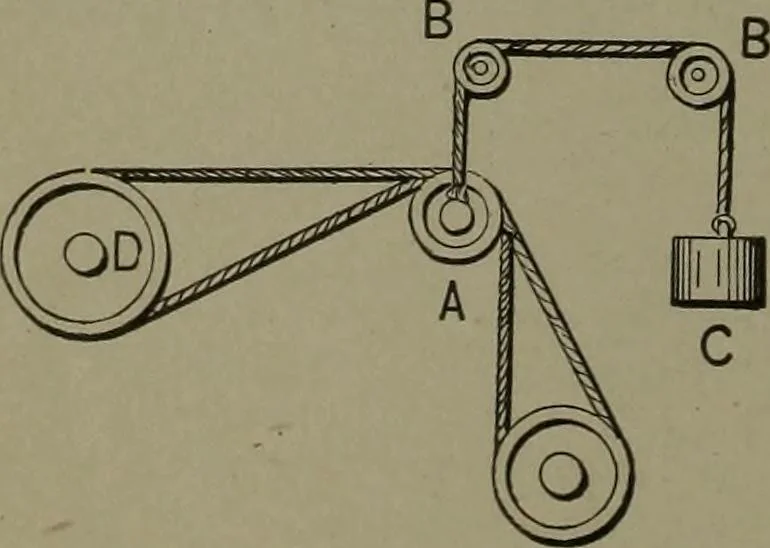

57. ROPE TRANSMISSION, with a tighteningpulley, B. O 58. VIBRATORY MOTION to two shafts, transmitted from the rocking of a lever armand sector. … 59. TRANSMISSION BY ROPE to a shaft atright angles to the driving-shaft. The guide sheavesgive direction to the rope over the curve face of thedriven pulley, the rope slipping towards the centreof the driven pulley. 60. TRANSMISSION BY ROPE toa portable drill or swing saw. D, driving sheave. A,…
Mechanical movements
